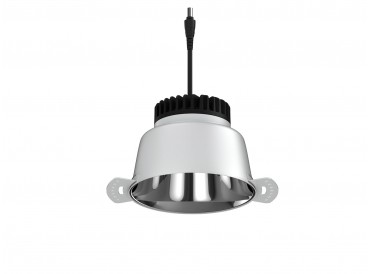

Spot LUXO Trimless Ø150mm
Installation: in trimless
Lumen flux: between 1500 and 2000 lumens
Color temperature: optional (3000K, 4000K and 5000K)
Regulation: On-Off or DALI (on request: ZigBee, CASAMBI, 0-10V)
Wattage: 15W
Colors: white (standard). Other custom RAL colors.
Reflectors: Four colors available: Chrome (standard), black, gold, and silver.
UGR: Low (<19)
Application: Offices, meeting rooms, housing, shops and arcades
Color temperature| Image | Référence | Nom du produit | System power (W) | Degree of protection | Luminous flow (lm) | Beam angle | Finishing | Color temperature | Light regulation | Diameter (mm) | Light source | UGR | Fixation |
|
D01472 | LUXO150T D01472 | 15W | IP44 | 1500lm | 85° | White | 3000K | On-off | 150mm | SMD2835 | 19 | Trimless |
|
D01473 | LUXO150T D01473 | 15W | IP44 | 1500lm | 85° | White | 3000K | DALI | 150mm | SMD2835 | 19 | Trimless |
|
D01474 | LUXO150T D01474 | 15W | IP44 | 1500lm | 85° | Black | 3000K | On-off | 150mm | SMD2835 | 19 | Trimless |
|
D01475 | LUXO150T D01475 | 15W | IP44 | 1500lm | 85° | Black | 3000K | DALI | 150mm | SMD2835 | 19 | Trimless |
|
D01476 | LUXO150T D01476 | 15W | IP44 | 1500lm | 85° | Chromé | 3000K | On-off | 150mm | SMD2835 | 19 | Trimless |
|
D01477 | LUXO150T D01477 | 15W | IP44 | 1500lm | 85° | Chromé | 3000K | DALI | 150mm | SMD2835 | 19 | Trimless |
|
D01478 | LUXO150T D01478 | 15W | IP44 | 1500lm | 85° | Yellow | 3000K | On-off | 150mm | SMD2835 | 19 | Trimless |
|
D01479 | LUXO150T D01479 | 15W | IP44 | 1500lm | 85° | Yellow | 3000K | DALI | 150mm | SMD2835 | 19 | Trimless |
|
D01480 | LUXO150T D01480 | 15W | IP44 | 1500lm | 85° | White | 4000K | On-off | 150mm | SMD2835 | 19 | Trimless |
|
D01481 | LUXO150T D01481 | 15W | IP44 | 1500lm | 85° | White | 4000K | DALI | 150mm | SMD2835 | 19 | Trimless |
|
D01482 | LUXO150T D01482 | 15W | IP44 | 1500lm | 85° | Black | 4000K | On-off | 150mm | SMD2835 | 19 | Trimless |
|
D01483 | LUXO150T D01483 | 15W | IP44 | 1500lm | 85° | Black | 4000K | DALI | 150mm | SMD2835 | 19 | Trimless |
