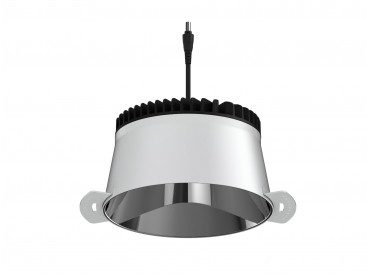

Spot LUXO Trimless Ø300mm
Installation: in trimless
Lumen flux: between 2000 and 4000 lumens
Color temperature: optional (3000K, 4000K and 5000K)
Regulation: On-Off or DALI (on request: ZigBee, CASAMBI, 0-10V)
Wattage: 20W
Colors: white (standard). Other custom RAL colors.
Reflectors: Four colors available: Chrome (standard), black, gold, and silver.
UGR: Low (<19)
Application: Offices, meeting rooms, housing, shops and arcades
Color temperature| Image | Référence | Nom du produit | System power (W) | Degree of protection | Luminous flow (lm) | Beam angle | Finishing | Color temperature | Light regulation | Diameter (mm) | Light source | UGR | Fixation |
|
D02044 | LUXO300T D02044 | 20W | IP44 | 2000lm | 85° | White | 3000K | On-off | 300mm | SMD2835 | 19 | Trimless |
|
D02045 | LUXO300T D02045 | 20W | IP44 | 2000lm | 85° | White | 3000K | DALI | 300mm | Trimless | ||
|
D02046 | LUXO300T D02046 | 20W | IP44 | 2000lm | 85° | White | 4000K | On-off | 300mm | SMD2835 | 19 | Trimless |
|
D02047 | LUXO300T D02047 | 20W | IP44 | 2000lm | 85° | White | 4000K | DALI | 300mm | Trimless | ||
|
D02048 | LUXO300T D02048 | 20W | IP44 | 2000lm | 85° | White | 5000K | On-off | 300mm | SMD2835 | 19 | Trimless |
|
D02049 | LUXO300T D02049 | 20W | IP44 | 2000lm | 85° | White | 5000K | DALI | 300mm | Trimless | ||
|
D02050 | LUXO300T D02050 | 20W | IP44 | 2000lm | 85° | Black | 3000K | On-off | 300mm | SMD2835 | 19 | Trimless |
|
D02051 | LUXO300T D02051 | 20W | IP44 | 2000lm | 85° | Black | 3000K | DALI | 300mm | Trimless | ||
|
D02052 | LUXO300T D02052 | 20W | IP44 | 2000lm | 85° | Black | 4000K | On-off | 300mm | SMD2835 | 19 | Trimless |
|
D02053 | LUXO300T D02053 | 20W | IP44 | 2000lm | 85° | Black | 4000K | DALI | 300mm | Trimless | ||
|
D02054 | LUXO300T D02054 | 20W | IP44 | 2000lm | 85° | Black | 5000K | On-off | 300mm | SMD2835 | 19 | Trimless |
|
D02055 | LUXO300T D02055 | 20W | IP44 | 2000lm | 85° | Black | 5000K | DALI | 300mm | Trimless |
