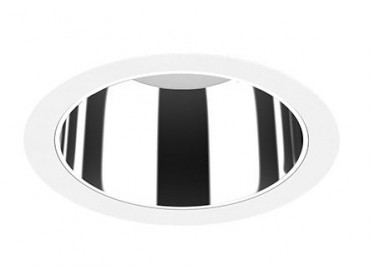

Spot LAKE
Installation: recessed under false ceilings
Lumen flux: between 1000 and 3300lm
Color temperature: optional (3000K, 4000K and 5700K)
Regulation: On-Off or DALI (on request: ZigBee, CASAMBI, 0-10V)
Power: from 11W to 43W
Colors: Standard> White. Other colors to choose from (for reflectors and case)
Application: Offices, house, shops and arcades
Color temperature| Image | Référence | Nom du produit | System power (W) | Degree of protection | Luminous flow (lm) | Beam angle | Finishing | Color temperature | Light regulation | Diameter (mm) | Light source | Fixation | Orientation |
|
D10108 | LAKE10 D10108 | 11.62W | IP54 | 1000lm | 75° | White | 3000K | DALI | 145mm | SMD2835 | Encastré | Fixe |
|
D10124 | LAKE18 D10124 | 20W | IP54 | 1800lm | 75° | White | 3000K | DALI | 145mm | SMD2835 | Encastré | Fixe |
|
D10140 | LAKE25 D10140 | 28W | IP54 | 2300lm | 75° | White | 3000K | DALI | 145mm | SMD2835 | Encastré | Fixe |
|
D10156 | LAKE18 D10156 | 20W | IP54 | 1900lm | 75° | White | 3000K | DALI | 172mm | SMD2835 | Encastré | Fixe |
|
D10172 | LAKE25 D10172 | 28W | IP54 | 2500lm | 75° | White | 3000K | DALI | 172mm | SMD2835 | Encastré | Fixe |
|
D10188 | LAKE35 D10188 | 43W | IP54 | 3300lm | 75° | White | 3000K | DALI | 172mm | SMD2835 | Encastré | Fixe |
|
D10109 | LAKE10 D10109 | 11.62W | IP54 | 1000lm | 75° | White | 4000K | DALI | 145mm | SMD2835 | Encastré | Fixe |
|
D10125 | LAKE18 D10125 | 20W | IP54 | 1800lm | 75° | White | 4000K | DALI | 145mm | SMD2835 | Encastré | Fixe |
|
D10141 | LAKE25 D10141 | 28W | IP54 | 2300lm | 75° | White | 4000K | DALI | 145mm | SMD2835 | Encastré | Fixe |
|
D10157 | LAKE18 D10157 | 20W | IP54 | 1900lm | 75° | White | 4000K | DALI | 172mm | SMD2835 | Encastré | Fixe |
|
D10173 | LAKE25 D10173 | 28W | IP54 | 2500lm | 75° | White | 4000K | DALI | 172mm | SMD2835 | Encastré | Fixe |
|
D10189 | LAKE35 D10189 | 43W | IP54 | 3300lm | 75° | White | 4000K | DALI | 172mm | SMD2835 | Encastré | Fixe |
