LEDO116 D02109

LEDO116 D02109

D02109
Product sheet

IES file

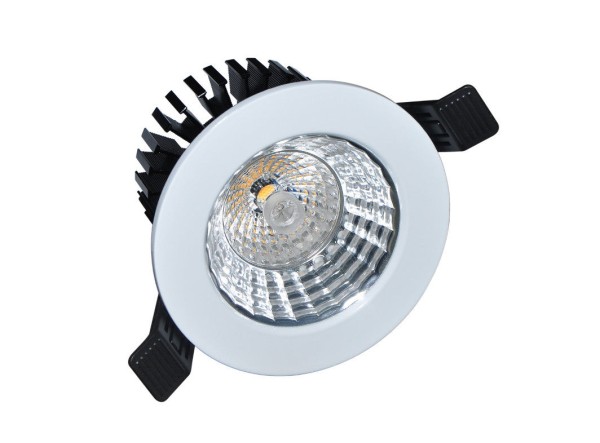

32W DIMMABLE CAPRICORN® 2.0 COB DOWNLIGHT(8INCH)
D02109

Data sheet

Depth (mm)
81

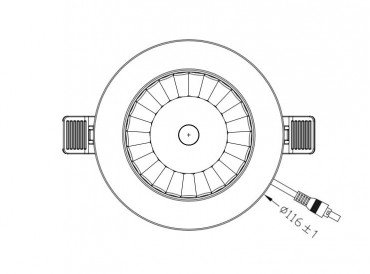

Diameter (mm)
116mm
Embedding diameter (mm)
100mm
System power (W)
10W
Luminous flow (lm)
902lm
Voltage
200-240V AC
Degree of protection
IP20
Luminaire life (h)
50'000H
Driver lifetime (h)
50'000H

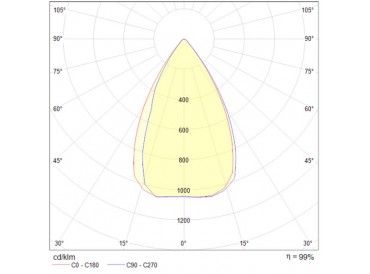

Beam angle
38°
Finishing
White
Light source
Luminus COB
UGR
19
IK resistance
IK08
MacAdam
4
IRC
90
Fixation
Encastré
Driver output amperage
450mA
Driver output voltage
30-42V
Protection class
Class Ⅱ
Matter
Warranty
5 years
Color temperature
4000K
Light regulation
DALI
Operating temperature
-20℃ ~40℃
Orientation
Fixe
