LUXO100A D01230

LUXO100A D01230

D01230
Product sheet

IES file

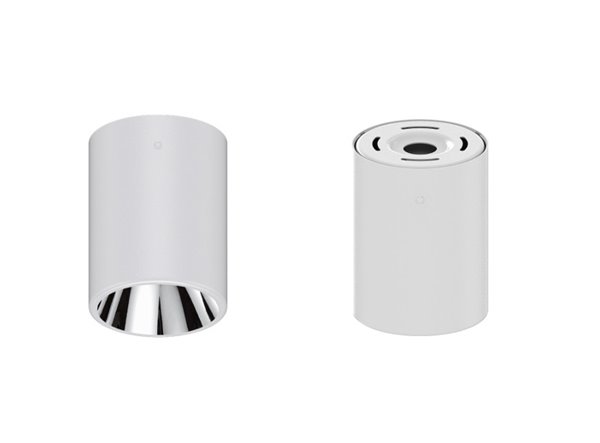

Downlight LUXO100A D01230 |Flux lumen1500lm |Puissance15W |Température des couleurs5000K |FinitionBlanc |RégulationDALI |Garantie5 ans
D01230

Data sheet

Diameter (mm)
100mm
System power (W)
15W
Luminous flow (lm)
1500lm
Voltage
110-277Vac
Degree of protection
IP44
Luminaire life (h)
50'000H
Driver lifetime (h)
50'000H

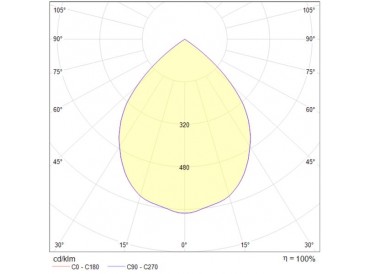

Beam angle
85°
Finishing
White
Light source
SMD2835
UGR
19
IK resistance
IK08
MacAdam
4
Fixation
Applique
Driver output amperage
160mA-1100mA
Driver output voltage
24-42V
Protection class
Class Ⅱ
Warranty
5 years
Color temperature
5000K
Light regulation
DALI
Operating temperature
-20℃ ~40℃
